SPECIFICATIONS

Technical Specifications

• Interface:USB 2.0 (USB Micro)
• Video Input:HDMI 2.0
• Video Output (Pass-Through):HDMI 2.0
• Audio Input:HDMI 2.0 / 4 Pole 3.5mm Jack ( Audio input from controller, Mic pass-through)*1
• Audio Output (Pass-Through):HDMI 2.0 / 4 Pole 3.5mm Jack ( Audio pass-through from controller, Mic input)*1
• Max Pass-Through Resolutions:4Kp60 / 1080p60
• Max Record Resolutions:1080p60
• Supported Resolutions (Video input):2160p, 1080p, 1080i, 720p, 576p, 480p, 480i
• Operation Modes:PC mode, PC-free mode, Card reader mode
• Record Format:MPEG 4 (H.264+AAC) / MJPEG / Supports hardware encoding

Dimension (W x D x H):

147 x 57 x 47 mm (5.8 x 2.2 x 1.8in)

Weight:185.5g (6.54 oz)

Notes:

1. LGP2 PLUS does not support viewing/recording/streaming of HDCP protected signals
2. Micro SD Class 10 card is required for PC-Free recording, Micro SD card is not included.
3. Micro SD maximum capacity support: 128GB
4. Micro SD Supported formats: FAT32 format / exFAT format

- When using the "FAT32 format" microSD card,

Due to the specification of FAT32, movies are divided and saved every 4 GB (about 25 minutes).

- Continuous recording is possible when using "exFAT format" microSD card

System Requirements(For dedicated streaming PC)

Operating sytem: Windows® 10 / 8.1 / 7 / Mac OS X (Support UVC Protocol)

For 1080p60

Desktop:

- Intel® Core™ i5 CPU i5-3330 or comparable (i7 recommended)

- NVIDIA® GTX 650 / AMD Radeon™ R7 250X or above are recommended

- 4GB RAM

Laptop:

- Intel Core™ i7-4810MQ

- NVIDIA GeForce GTX 870M

- 4 GB RAM (8 GB recommended)

Operating System: macOS X 10.13 or later (Support UVC Protocol)

For 1080p60

iMac 2013:

- 2.9GHz quad-core Intel Core i5 processor

- NVIDIA GeForce GT 750M graphics processor with 1GB of GDDR5 memory

- 16GB of 1600MHz DDR3L onboard memory

MacBook Pro 2013:

- 2.5GHz quad-core Intel Core i7 processor

- NVIDIA GeForce GT 750M with 2GB of GDDR5 memory and automatic graphics switching

- 16GB of 1600MHz DDR3L onboard memory

MacBook Pro 2017:

- 2.8GHz quad-core Intel Core i7 processor

- AMD Radeon Pro 555(2GB GDDR5) at least

- 16GB of 2133MHz LPDDR3 at least

What's in the box??

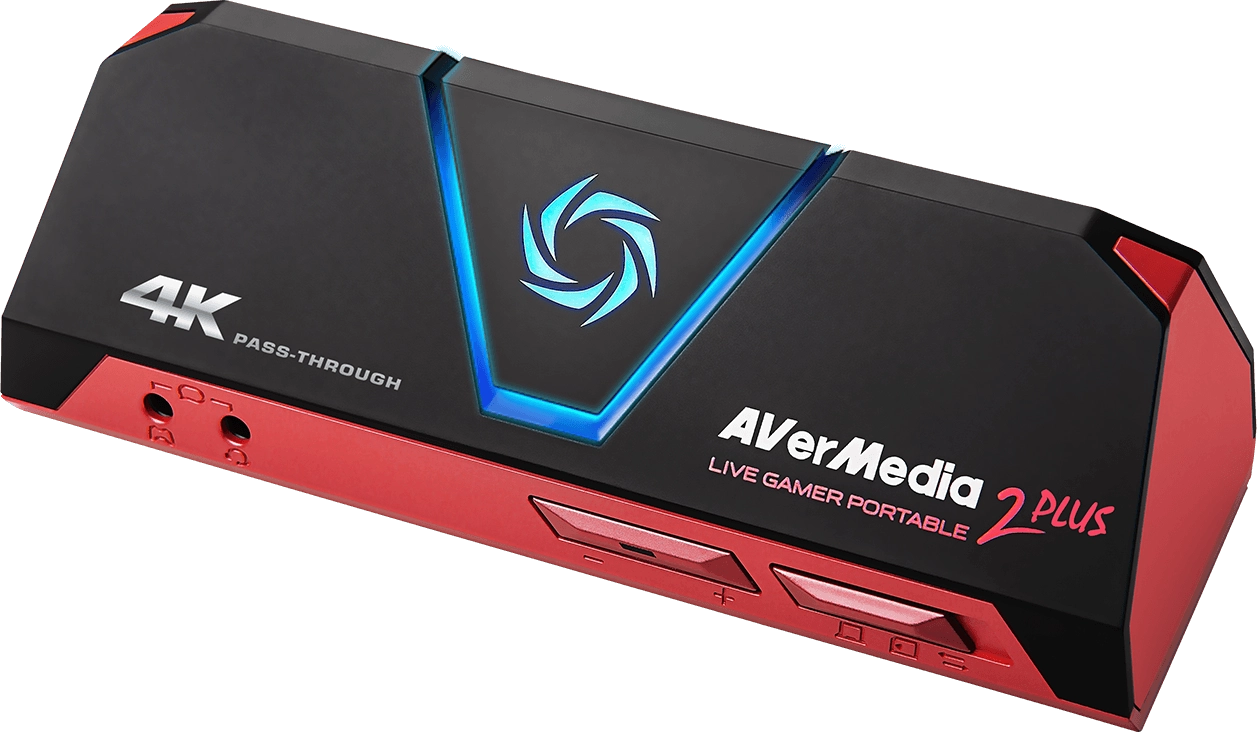

• Live Gamer Portable 2 PLUS (GC513)
• HDMI cable
• USB Micro to Type-A cable
• 4-Pole 3.5mm audio cable
• Quick guide
